PRESION · CARBON FIBER OIL CATCH CAN · PA12 CF · AUSTIN, TX

Stop feeding oil back into your engine.

Every turbocharged, supercharged, and hard-driven engine pushes oil mist out of the crankcase. With no real separation, that oil coats your intake, fouls the throttle body, kills intercooler efficiency, and bakes into carbon on your valves. A catch can is supposed to stop that. Most don't.

See specs & order →
The Problem

Why most catch cans fall short

At this price, you are usually buying steel wool in an aluminum can. A wad of mesh stuffed in an empty shell looks fine on a shelf and does almost nothing in a vacuum line. Real oil separation takes more than a container and some metal — it takes internal geometry, and geometry is exactly what a hollow can doesn't have.

  • Oil mist coats your intake piping
  • Throttle body fouls and gums up
  • Intercooler efficiency drops
  • Carbon builds on intake valves
  • The engine bay turns into a mess
PRESION carbon fiber oil catch can, matte black, with two hose barbs and brass drain port Cutaway of PRESION oil catch can showing multi-stage internal baffle and filter geometry PRESION carbon fiber oil catch can exterior, two hose barbs and brass drain port CAD model of the PRESION oil catch can showing internal baffle geometry through a translucent body Two PRESION carbon fiber oil catch cans side by side, matte-black PA12 carbon fiber Quarter cutaway render of the PRESION catch can showing the multi-stage internal baffle columns and hose barb Render of the PRESION carbon fiber oil catch can exterior with dual hose barbs and drain port

Carbon Fiber Oil Catch Can · PA12 CF · Universal Fit · Austin, TX

PRESION

PRESION runs five separation stages — two fine filter stages and three baffles — printed as a single sealed piece. The market ceiling at this price is a single baffle. This internal geometry cannot be machined; additive manufacturing is the only process that can produce it. That is the whole point: the part does what the cheap ones only claim to.

PA12 carbon fiber composite, heat treated. Fuel and oil resistant — the same material family as your gas tank and fuel lines. Field-validated 12 months on a 300k-mile engine in a prerunner. Rev 5 is the unit that ships today; Rev 6 is in road testing and replaces Rev 5 at the same price.

  • 5 separation stages — 2 fine filter + 3 baffle
  • PA12 CF — heat treated, fuel and oil resistant
  • 1/4" to 7/8" hose barbs, universal fit — custom sizes on request
  • 5" length · 5" height · 3" diameter
  • 10mm mount bracket included — universal, some DIY required
  • AN / ORB metal fitting hardware available
  • Built to order · 2–3 business days · Austin, TX
Order Now Install & mounting guide →

10,000-mi warranty · 30-day returns · US shipping only · QUESTIONS → [email protected]

What You're Actually Buying

Engineered for real oil separation

Every spec on this can exists for a reason you'll see on the car. Here's what each one does, and what it does for you.

Five separation stages Forces crankcase vapor through a controlled path so oil condenses and drops out Oil stays in the can — not on your intake, throttle body, or intercooler
PA12 carbon fiber, heat treated Survives under-hood heat and constant oil contact without degrading Doesn't soften, swell, or crack where generic cans break down
Single-piece printed geometry No seams or loose stuffing to pack down or blow through under vacuum Separation that actually holds up — not steel wool that collapses
Universal 1/4"–7/8" barbs + optional AN/ORB Matches your plumbing and seals properly on install Clean fitment, fewer leaks, less time fighting the install
See Inside

The geometry a hollow can can't have

These are section views of the actual PRESION model — the internal path crankcase vapor is forced through. Two fine filter stages and three baffles, printed as one sealed piece. Nothing stuffed, nothing loose, nothing to blow through under vacuum.

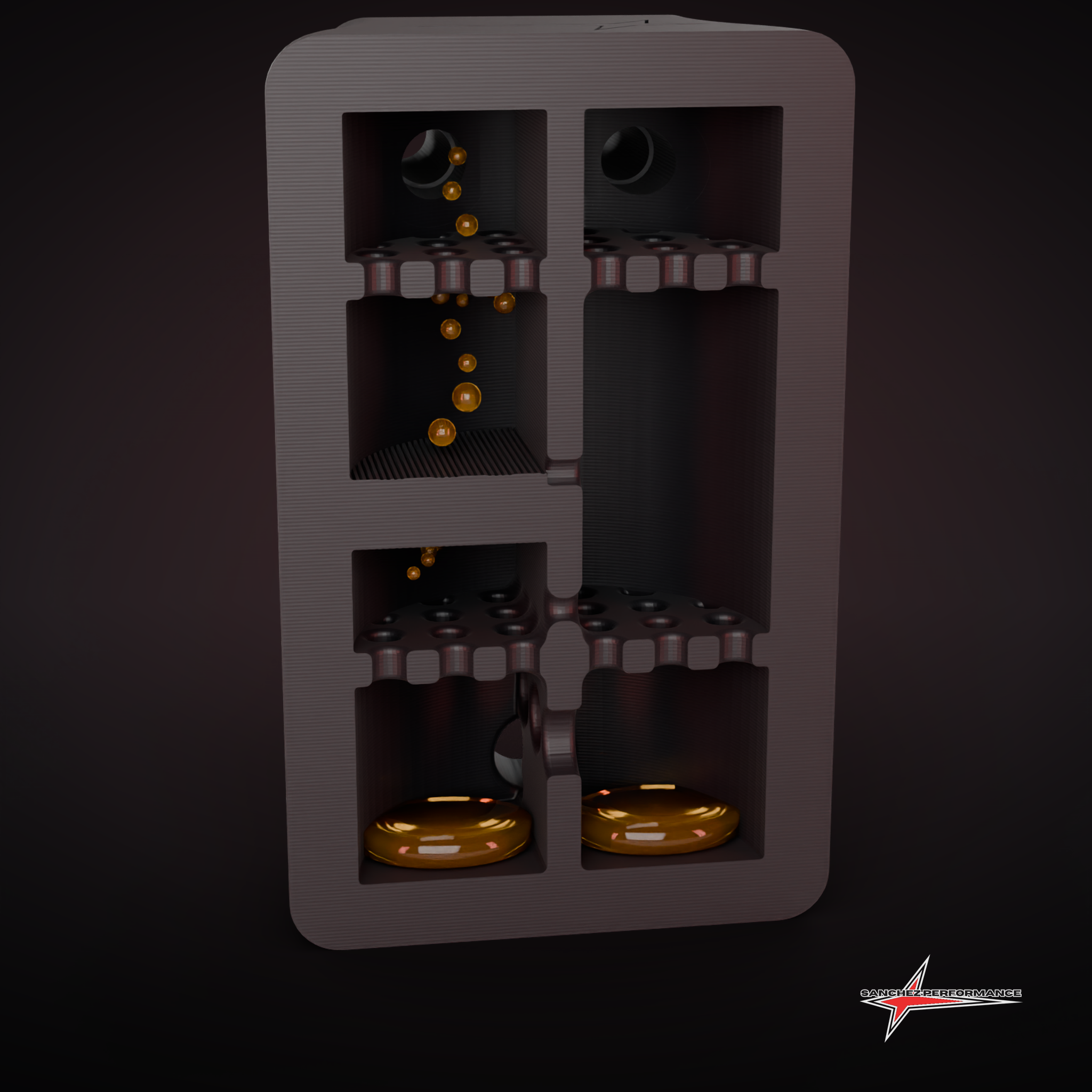

Cross-section render of the PRESION catch can showing oil mist condensing on the baffles and draining into pools at the base
Vapor enters at the top and works down through the stages. Oil condenses on each baffle, drops out, and pools at the base — instead of coating your intake.

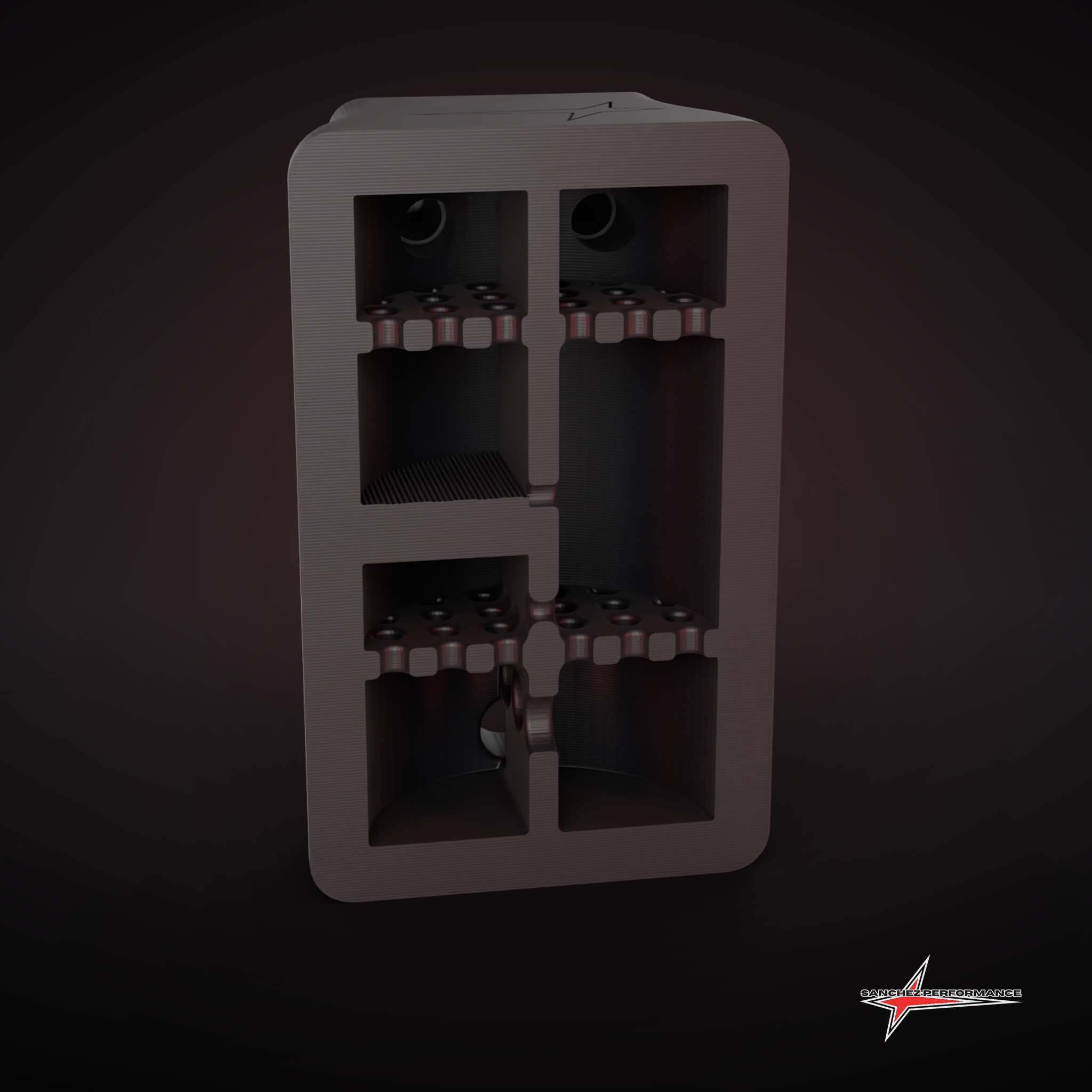

Front cross-section render of the PRESION catch can showing all five internal separation stages
All five separation stages in one sealed print. This internal geometry can't be machined — additive manufacturing is the only process that can produce it.

The cheapest insurance on the car.

Oil in the intake isn't cosmetic. It robs intercooler efficiency, builds carbon on the valves, and on a built engine it's a failure mode waiting for a bad day on the highway. Against what you spent on the build, a catch can that actually separates oil is the cheapest insurance you can bolt on.

Order PRESION →
How It Got Here

Five generations. One year.

PRESION exists because oil mist in the intake is a real failure mode, not a cosmetic one. It started as a PLA prototype zip-tied to a 4.6 F150 and went through five full generations of baffling geometry, material testing, and real-world validation before it shipped, and it has now run 12 months on a 300k-mile engine in a prerunner. Rev 5 ships today; Rev 6 is in road testing and replaces Rev 5 at the same price. Every product gets proven on a real vehicle before it gets sold. Not before.

Designed and tested in Texas by people who actually work on performance vehicles — not a marketing department.

Sanchez Performance Competition Series decal

Read the full build log →

Preview · Rev 6 in road testing

Rev 6 is on the truck.

Rev 5 is the PRESION that ships today. Rev 6 is in road testing on our F150 and will replace Rev 5 at the same $150 once it has earned it. These are preview renders of the Rev 6 model, not a listing: if you order now, you get Rev 5.

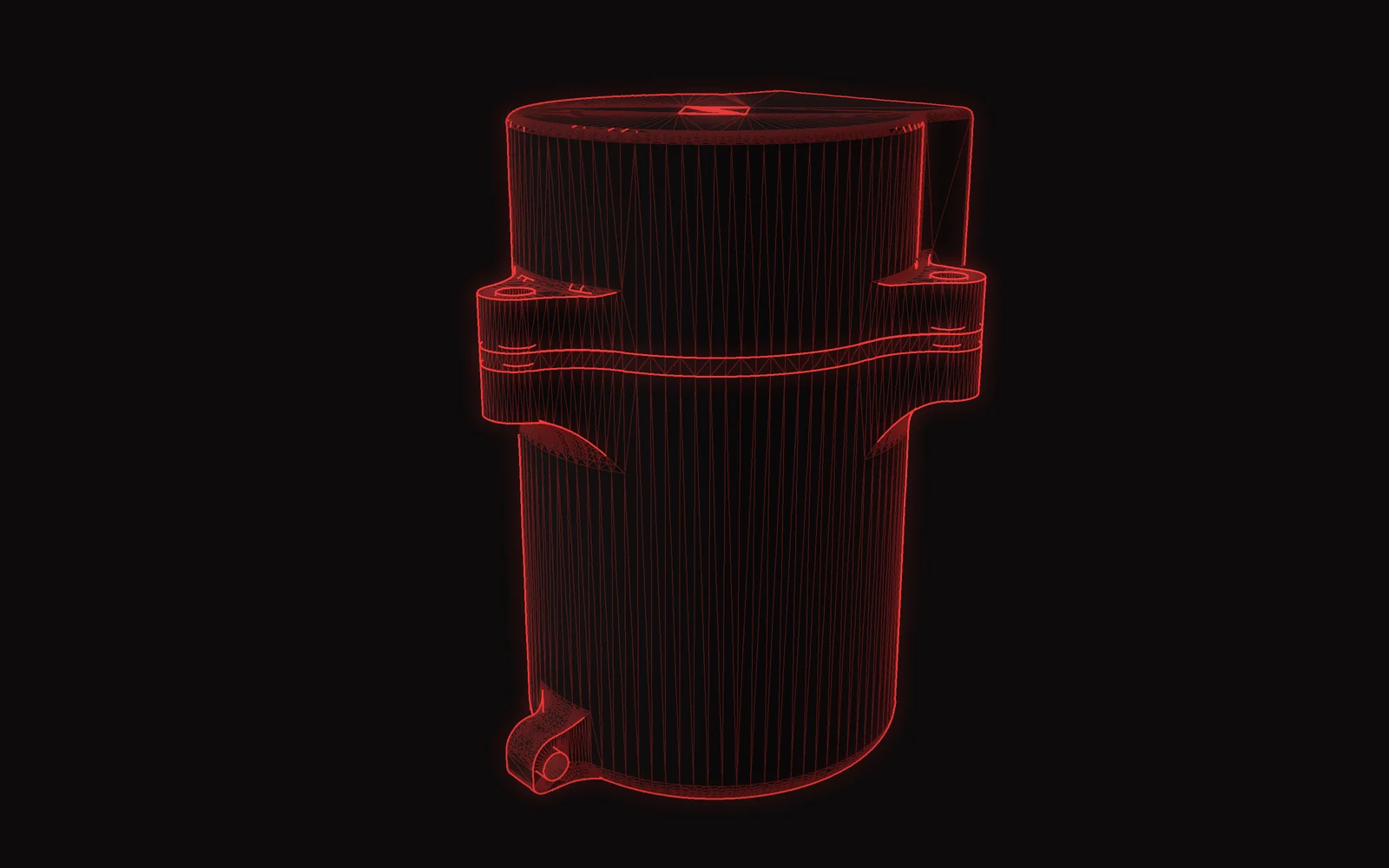

Preview · not yet for sale Red wireframe render of the PRESION Rev 6 catch can on a dark background, showing the body, lid, clamp ears and drain boss
Rev 6 in wireframe. Same can, same job: lid, body and a new sealed joint between them.

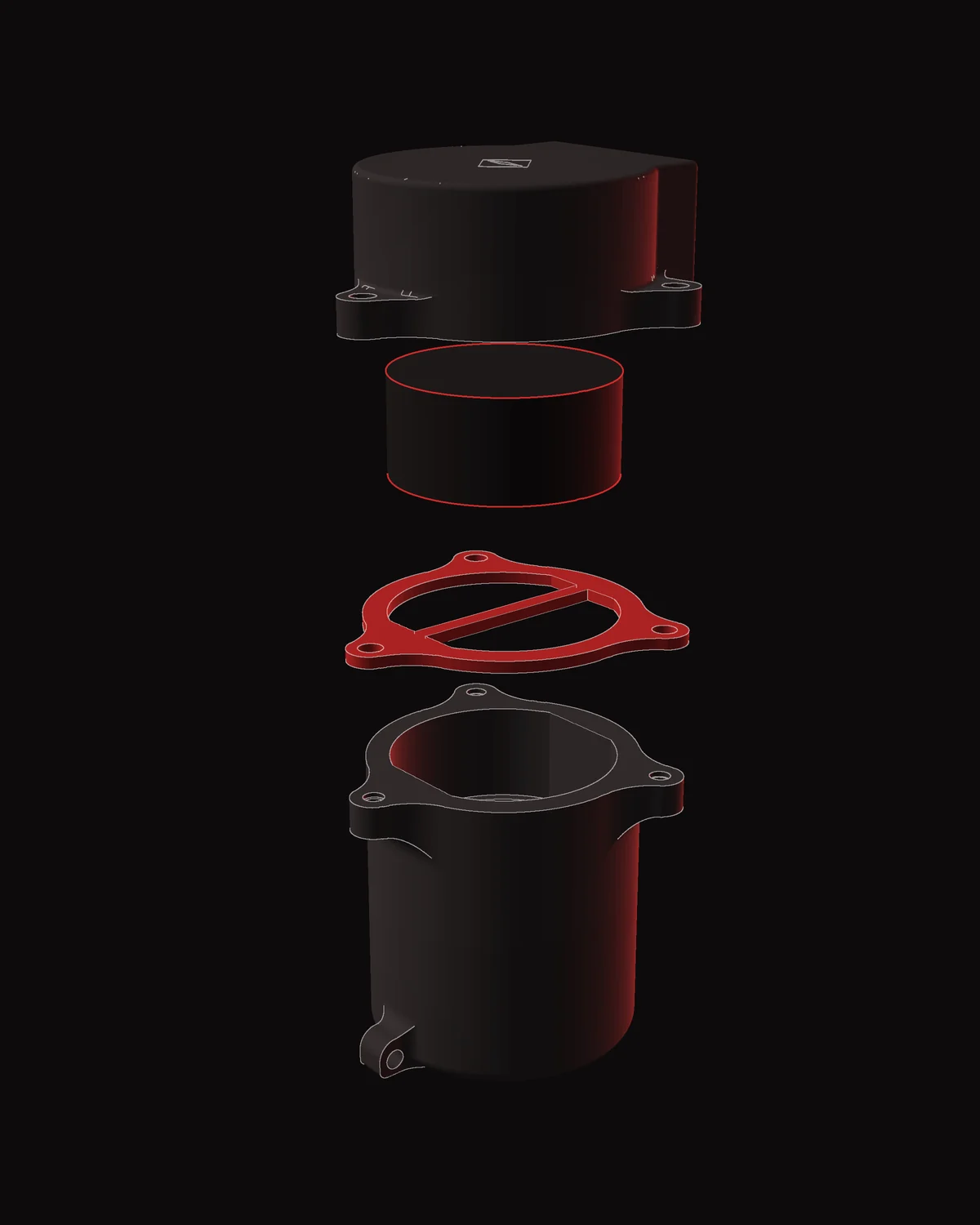

Exploded render of PRESION Rev 6: lid on top, the internal separation stack as a plain placeholder cylinder, a red TPU gasket, and the body at the bottom
Exploded preview: lid, separation stack, TPU gasket (red), body. The stack is drawn as a plain placeholder; its geometry stays in-house.

What changes in Rev 6

TPU gaskets

A flexible TPU gasket now seals the lid to the body.

Redesigned heat-insert boss

The bosses that carry the threaded inserts holding the lid down have been reworked.

Improved hosing

Better hose connections between the engine and the can.

Where it goes after that

Longer term we are working toward full PPA-CF, a modular body, and gyroid separation media. That is direction, not a promise.

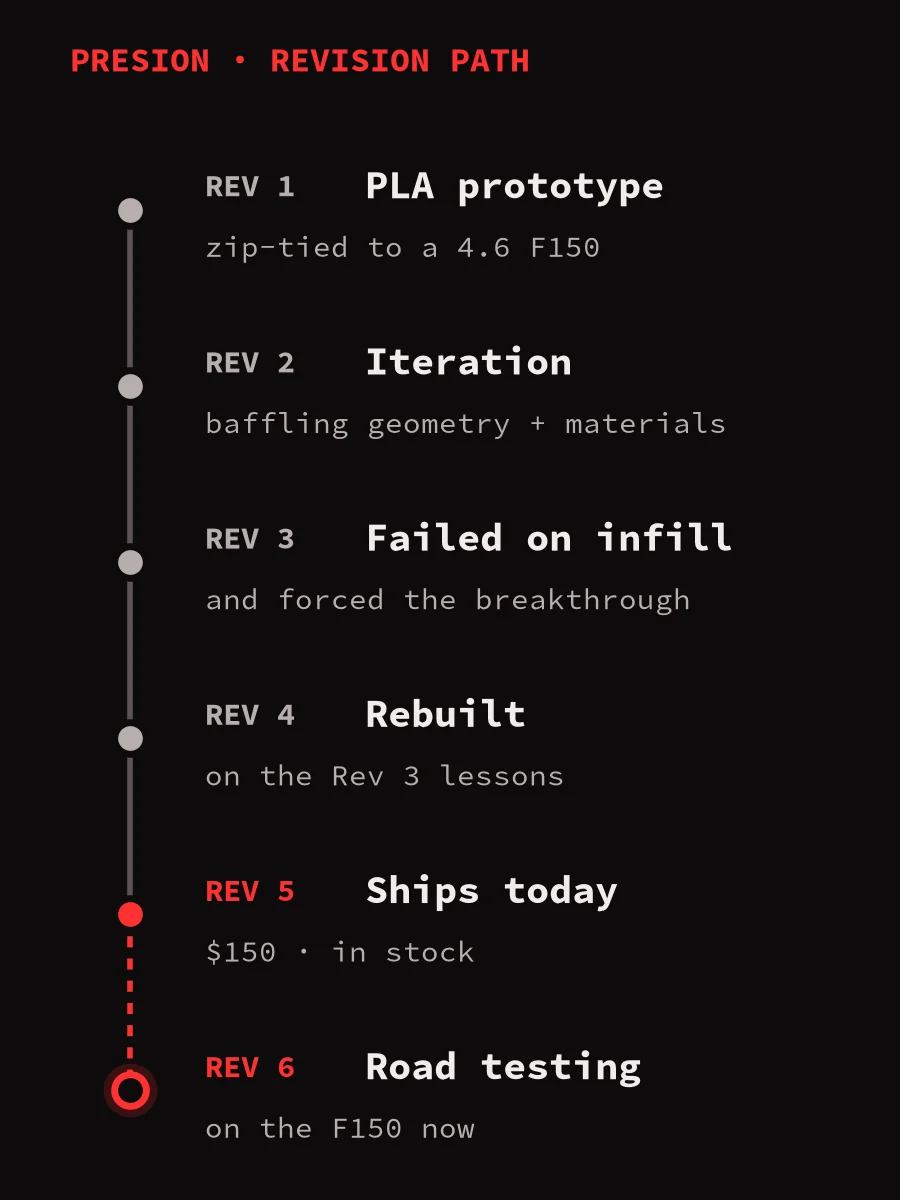

Revision path chart: Rev 1 PLA prototype, Rev 2 iteration, Rev 3 failed on infill, Rev 4 rebuilt, Rev 5 ships today, Rev 6 road testing on the F150
Rev 1 to Rev 6. Rev 5 ships; Rev 6 is the one on the road now.

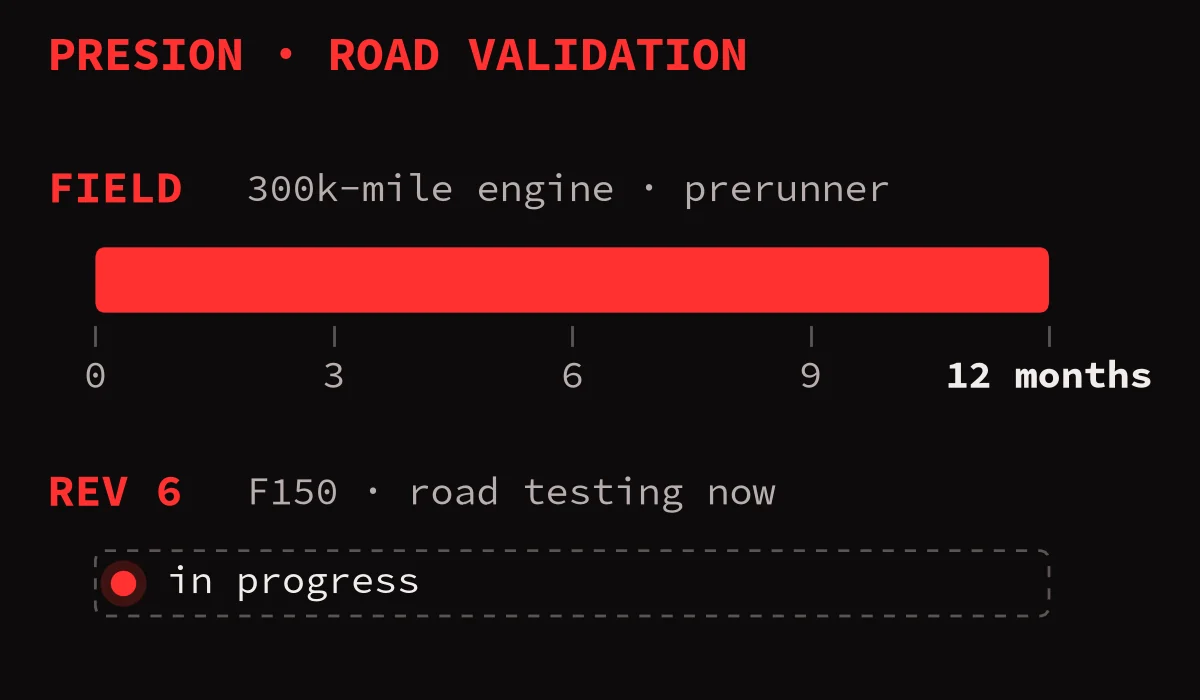

Road validation chart: a full 12-month bar for the field run on a 300k-mile engine in a prerunner, and an in-progress marker for Rev 6 road testing on the F150
12 months on a 300k-mile engine in a prerunner. Rev 6 road testing is in progress, and we will post results when it is done.
Backlit silhouette of the PRESION Rev 6 catch can against a red glow
Rev 6 goes on sale when road testing is done. Until then, Rev 5 ships. Order Rev 5 →
Owner Review

From someone running one

★★★★★

“I’m running their catch can on my truck no complaint so far, great products and reasonably be priced!”

Steven Zytkovicz Google review · December 2025

One review, reproduced unedited from our Google Business Profile. If you are running a PRESION, we would rather have your honest write-up than a quiet one.
